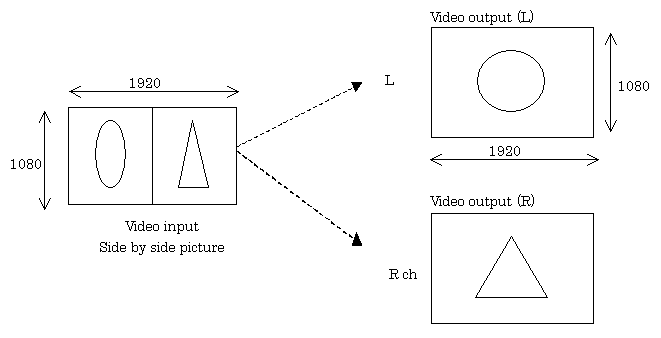

Side By Side Decoder can separate one side by side 3D high definition picture compressed into horizontal direction to original 2 high definition pictures (L channel and R channel).
Input signal is corresponding to HD-SDI signal.
Output signal is HD-SDI and DVI-D signal to connect with 3D display.



1. Features
  1. It can separate one side by side 3D high definition picture to original 2 high definition pictures (L channel and R channel).


  2. Equipped with HD-SDI signal input / output based on SMPTE 292M and DVI-D signal output.
    It is not corresponding to Dual-Link and 3G-HD-SDI signals.


  3. It is possible to output the input signal without decoding (through) by the switch on the front panel. HD-SDI signal is output as it is.


  4. Size of the unit is 1U half rack size. Power supply to the unit is DC+12V. It can operate by variable DC voltage from +9V to +18V. Therefore, Lithium-ion battery can be connected.


  5. This equipment is corresponding to the HD signal of 1920x1080 4:2:2 format. Input video signal format is recognized automatically. 1920x1080 format based on SMPTE 274M (60p/50p is not recognized). 1920x1080sF (segmented frame) based on SMPTE RP211-2000 Input/output video format is same.


  6. Thanks to DVI-D signal output, monitor corresponding to 3D can be connected. 3D display with more than 1920x1080 pixel resolution and vertical interleave system. 3D display which can display the frame rate corresponding to 60P, 50P, 48P


  7. It is corresponding to HD-SDI multiplex signal (embedded audio, time code, etc). Multiplex data of L channel is output.


  8. Delay time of HD-SDI input/output is less than 88μs.


2. Specifications

2.1 Input/output video signal
HD-SDI input
Input terminal BNC connector x2 (1 channel is not used)
Input impedance 75Ω
Input return loss More than 15dB (5MHz or more)
Maximum input voltage ±2V (DC + peak AC)
HD-SDI output
Output terminal BNC connector x2 (L-channel and R-channel)
Output impedance 75Ω
Output voltage 800mVp-p ±10%
DVI-D output
Output terminal DVI-D connector x1 (Single-link 24bit)
Output format 1920x1080 fixed
60P, 50P, 48P (different by input format)
Corresponding display Vertical interleave system 3D display
(More than 1920x1080 pixel)

Input video format 1920x1080 format based on SMPTE 274M
1920x1080sF 4:2:2 format based on SMPTE RP211-2000
recognition from following format;
080i/60, 1080sF/30, 1035i/60
080i/59.94, 1080sF/29.97, 1035i/59.94
080i/50, 1080sF/25
080p/30
080p/29.97
080p/25
080p/24
080p/23.98
080sF/24
080sF/23.98

2.2 General Characteristic
Power supply DC +12V (+9 ~+18V)
Power consumption Less than 15W
Ambient temperature 0°C ~ 40°C
Ambient humidity 20 ~ 80% RH (No condensation)
Size EIA 1U half size
220(W) x 44(H) x 180(D) (Except projection)
Power supply connector 4-pin Canon type connector, equivalent to HIROSE
HA16RA-4P
Pin assignment (1:GND   2:N.C   3:N.C   4:+12V)
Power fuse 5A (Installed inside)


3. Function of Each Part

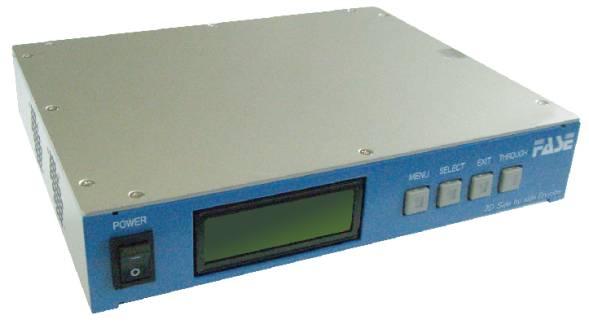

3.1 Front Panel


* Power Switch
Turns ON/OFF the power.
ON/OFF operation shall be done with more than 2 seconds interval.
ON/OFF operation with short interval causes the trouble.
* Status Monitor Indication
LCD display indicates the operating status and setting status.
* Function Set Switch
Sets various function by [MENU] button, [SELECT] button, [EXIT] button.
Setting contents are memorized in the nonvolatile memory.
* THROUGH Switch
By pushing [THROUGH] button, this machine can be made THROUGH mode.
To cancel, press the button once again.
THROUGH mode is not stored and returns to original status by turning the power ON again.

3.2 Rear Panel


* Power Input (DC +12V IN)
DC +12V power input (+9 ~+18V)
4-pin Canon type connector, equivalent to HIROSE HA16RA-4P
Pin assignment (1:GND   2:N.C   3:N.C   4:+12V)
* REMOTE1 Connector
Remote connector for external control. This is not used.
* REMOTE2 Connector
Remote connector for external control. This is not used.
* HD-SDI Input (BNC) Side by side Video Input
Input connector for HD-SDI signal.
Input Side by side video signal.
* HD-SDI Output (BNC) L channel
Output connector for decoded L channel video signal from Side by side signal.
* HD-SDI Output (BNC) R channel
Output connector for decoded R channel video signal from Side by side signal.
* 3D Monitor Output: Video Output Connector (DVI-D)
DVI-D connector for 3D display.
